The Complete Algae Cultivation Process: From Microorganism to Supplement

Blog Overview

When we think of algae, we often picture a green film floating on a pond. But behind many supplements is a carefully controlled algae cultivation process, and algae are far more versatile, with applications in food, cosmetics, pharmaceuticals and nutritional supplements. Some ingredients in our daily nutrition may even begin as a single algal cell.

So, how does something so small become a valuable source of nutrients and bioactive compounds? Let’s explore the algae cultivation process, from a microscopic cell to a carefully grown ingredient.

What Is Algae Cultivation?

Algae cultivation is the controlled growing of algae to harvest either their whole biomass or specific compounds they produce.

Most microalgae use light, CO₂, water and nutrients to build biomass rich in proteins, lipids, pigments, vitamins, minerals, omega-3 fatty acids and carotenoids. Each species has its own needs: some grow in fresh water, others in seawater, and each has its own tolerance for light, temperature and other conditions.

So, there’s no one-size-fits-all approach. Every algae cultivation process starts with the same question: what do we want to get from the algae?

Selecting the Right Algae Strain

Choosing the strain is one of the most consequential decisions in the whole process.

Thousands of algal strains are known, but only a relatively small number are grown commercially at scale. The choice depends on what the strain is for, its nutritional profile, the environment it needs and the compound it is expected to produce.

Common Algae Used for Supplements

• Spirulina – rich in protein, pigments and minerals, and widely used as a powder in foods and supplements.
• Chlorella – a freshwater green alga grown for human nutrition, valued for its protein, minerals and other cellular nutrients.
• Haematococcus pluvialis – a green alga that, under stress, accumulates natural astaxanthin, called the king of carotenoids.
• Schizochytrium – a marine alga grown by fermentation in closed tanks; it is a leading source of algal DHA, an omega-3 fatty acid.

Factors to Consider When Selecting an Algae Strain

Strain selection is one of the crucial stages of algae cultivation. There are several criteria to check whether the strain is optimal for production of the required product on the required scale:

• Growth rate
• Desired product
• Environmental tolerance
• Resistance to contamination
• Harvesting properties
• Ability to scale up
• Quality of the product

The goal is to find the best balance between all of these factors and production cost. That is what makes algae biotechnology so interesting: it isn’t just about growing algae, but about designing the entire production process around what the algae are meant to produce.

Preparing the Culture Medium

Once a strain is chosen, it needs the right environment and nutrients to grow. The culture medium is tailored to the organism: most media supply nitrogen, phosphorus, minerals and trace elements, and marine species also need the right salinity and ionic balance.

Essential Nutrients for Algae Growth

Microalgae need a mix of macronutrients and micronutrients, although the exact levels vary from species to species. Important nutrients mainly include:

• Phosphorus is involved in the exchange of energy within the cell and the formation of cellular structures.
• Potassium controls important physiological processes, osmoregulation and stress resistance.
• Carbon forms around 40–50% of algal dry biomass as an important constituent of proteins, lipids, carbohydrates and nucleic acids.

Other elements such as magnesium, sulphur, iron and various trace minerals are also required for normal cellular functions.

Getting the balance right matters: a shortage of any essential nutrient can slow growth, while an excess or imbalance can cause problems of its own.

Importance of Water Quality

Water can look like the simplest part of the system, but its quality has a real effect on cultivation. It influences nutrient availability, salinity, pH, microbial load and, ultimately, the quality of the harvested biomass. Depending on the species and system, producers may monitor mineral content, hardness, salinity and microbial load, and treat the water before it enters the cultivation system.

Starting the Algae Culture

With the medium ready, the next step is to introduce the algae.

Commercial cultivation never jumps straight from a small lab flask to a full-scale production system. Instead, the culture is scaled up in stages: each culture grows until it is dense and healthy enough to seed the next, larger one.

Inoculation Process

Inoculation is the process of transferring algae into the prepared growth medium. The objective is to begin with cells that are:

• Viable
• Actively growing
• Free from obvious contamination
• Suitable for the next scale-up stage

The inoculum ratio and stage of growth depend on the organism and culturing system used. At an industrial scale, this process includes several stages of scale-up:

Laboratory culture → Seed culture → Intermediate culture → Pilot system → Production system

At each stage, the volume increases while the culture’s health and quality are maintained. As volumes grow, factors such as light penetration, mixing, gas transfer and temperature become increasingly important.

Preventing Contamination

Contamination is the biggest problem in growing algae. Bacteria, fungi, protozoa and undesirable algae can thrive and take over the desired algae. Contamination can come from water, air, the outside environment or equipment. Routine sanitation and proper culture practices are necessary to prevent these issues and ensure healthy algae growth.

Conditions Required for Algae Cultivation

Once the culture begins to grow, the priority is keeping its environment right. Photosynthetic microalgae need adequate light, the right temperature and pH, CO₂, nutrients, mixing and aeration. What makes cultivation tricky is how interdependent these factors are: change one, and the others are affected too.

Light

Light is a critical parameter in photosynthesis, the algae growth process and the production of metabolites in algae. Lack of light can restrict photosynthesis, while an excess of it can damage algae through oxidative stress. Mixing in bioreactors can ensure adequate light distribution throughout the culture.

Temperature

Temperature can affect the growth of algae cultures. A specific range of temperatures is suitable for any particular strain of algae. Deviation from this range decreases the growth rate and causes stress to the cells. Temperature fluctuations are smaller in closed systems than in outdoor systems.

pH and Carbon Dioxide

Photosynthesis uses carbon dioxide, which in turn can increase the pH of the culture medium. In controlled cultivation processes, the required amount of CO₂ is introduced to meet photosynthesis requirements, supply a carbon source and balance the pH. The methodology depends on the algae species, culture medium and cultivation system.

Nutrients, Mixing and Aeration

Imagine a huge bioreactor filled with millions of cells. Without efficient mixing, some cells will get more of the light and nutrients than others. Proper mixing ensures the uniform distribution of light, nutrients, gases and heat, while aeration provides cells with the necessary carbon dioxide and prevents them from settling at the bottom of the reactor.

Algae Cultivation Methods

Algae can be grown in several ways. For photosynthetic algae, the two main commercial approaches are open ponds and closed photobioreactors; a third approach, fermentation, grows certain species without light. No method is inherently superior: the right choice depends on the organism, the final product, the scale of production, the local environment and the level of control required.

Open Pond Cultivation

Open ponds – shallow raceway channels, circular ponds, unstirred ponds or cascade systems – hold the culture outdoors, usually mixed by paddle wheels, with sunlight as the main light source. Their simple construction makes them well suited to large-scale production.

Despite their exposure to the elements and the resulting risks of contamination, evaporation, rain, dust and temperature swings, open ponds remain a practical way to produce large quantities of robust algal biomass such as spirulina and chlorella.

Closed Photobioreactor Cultivation

A photobioreactor is a growth system for microalgae that gives much greater control over the culture environment. It can be tubular, flat-panel, column-shaped or airlift. Because the system is closed or partially closed, conditions such as light, temperature, CO₂ levels and mixing can be tightly controlled, and the risk of contamination is reduced. It is especially useful when algae are grown for high-value bioactive compounds. The trade-off is that closed systems cost more to build and use more energy.

Some microorganisms – most notably Schizochytrium – can be grown heterotrophically: instead of making energy from light, they are fed a carbon source such as glucose and grown in closed stainless-steel fermentation tanks, similar to those used to produce enzymes and vitamins.

Open Ponds vs. Photobioreactors

The table below compares the two light-based methods. Fermentation sits apart from both: it needs no light at all, offers the tightest process control, and is the method behind algal DHA oils.

Factor	Open Ponds / Raceway Ponds	Closed Photobioreactors (PBRs)
System design	Open shallow ponds, usually circulated with paddle wheels	Enclosed transparent systems such as tubular or flat-panel reactors
Initial investment	Lower	Higher
Environmental control	Limited; strongly influenced by weather	High control over light, temperature, pH and CO₂
Contamination risk	Higher due to exposure to the environment	Lower, although not completely eliminated
Biomass productivity	Generally lower and more variable	Generally higher volumetric productivity
Land requirement	Generally higher	Generally lower per unit of production
CO₂ utilisation	Less efficient and more difficult to control	More efficient and controllable
Maintenance	Relatively easier	More demanding; cleaning and biofouling can be significant
Energy requirement	Generally lower for mixing and operation	Generally higher because of pumping, mixing, cooling and gas transfer
Suitable applications	Large-scale, lower-value biomass and robust strains	High-value products requiring purity, consistency and tighter process control

Monitoring Algae Growth

Once the culture is operational, monitoring measures cell density, pH, temperature, dissolved oxygen and nutrient status. Microscopic observation gives an essential piece of the puzzle, as it indicates cell viability, aggregation and contamination. Knowing which stage the culture is in – adaptation, exponential growth or stationary – gives clues on when to harvest.

Monitoring isn’t only about counting algae; it’s about asking, “What are the algae doing?”

Harvesting and Processing Algae Biomass

Eventually, the algae need to be separated from the liquid they grow in. This is one of the trickier engineering steps: microalgal cells are tiny and often present at low concentrations, so separating them from large volumes of water is difficult.

Algae Harvesting Methods

The harvesting method depends mainly on the properties of the algae and the biomass quality required.

• Centrifugation: spins the culture at high speed to separate the cells from the medium.
• Filtration: passes the culture through filters or membranes; it works best for larger or filament-forming algae.
• Flocculation: clumps individual cells together by chemical or physical means so they are easier to separate.
• Sedimentation: lets single or clumped cells settle out of the medium naturally.

Often several methods are combined: for example, the culture may first be concentrated by flocculation or sedimentation, then separated further by centrifugation or filtration.

Washing and Biomass Processing

After harvesting, the concentrated biomass may be washed to remove residual culture medium or other unwanted material. This step can directly influence the quality of the final ingredient.

Drying Algae Biomass

The biomass is then usually dried to reduce its moisture content, which makes it easier to store, transport and process. Common methods include spray drying and freeze drying, and the choice depends largely on how heat-sensitive the compounds in the biomass are.

From Algae Biomass to Supplement

Harvested algae biomass is only one part of the journey. Depending on the desired product, the biomass can be used directly, ground into powder or processed further to extract a particular ingredient.

Converting Algae Into Powder

When the goal is to keep the nutritional value of the whole organism, the dried biomass can be milled into a fine powder, which can then be used in tablets, capsules, drinks, foods and supplements.

Extracting Nutrients and Bioactive Compounds

For other products, specific nutrients or compounds are extracted from the algal cells. This step needs particular care to protect delicate components such as omega-3 fatty acids, pigments, proteins and vitamins.

Common industrial-scale extraction methods include:

• Solvent extraction – widely used to recover lipids, pigments and other bioactive compounds using suitable solvents.
• Mechanical cell disruption – methods such as bead milling, high-pressure homogenisation and grinding break open algal cells to release the compounds inside.
• Supercritical CO₂ extraction – uses pressurised CO₂, particularly for extracting lipids, carotenoids and other valuable non-polar compounds.

Supplement Formulation

Once processed, the algae-based ingredient may be combined with other nutrients and made into:

• Softgels, capsules, tablets and powders
• Functional food and drink products

At this stage, the formulator has to consider stability, dose, ingredient compatibility, packaging and shelf life so that the product delivers the intended nutrient or active compound right up to its expiry date.

How Cultivation Methods Affect Algae Supplement Quality

Algae growth rate and metabolism, which in turn determine levels of pigments, lipids, fatty acids and other compounds, are affected by factors such as light intensity, nutrient availability, temperature and carbon source. Pushing algae to synthesise more of a particular substance may inhibit their growth and the yield of other substances.

Quality Control in Algae Supplement Production

Good cultivation alone does not guarantee a good supplement. Quality needs to be checked throughout the production process, from the original culture to the finished product.

Nutritional Composition and Purity

Testing confirms that the algal biomass or extracted ingredient contains what it is expected to contain. Depending on the product, this may include analysis of proteins, lipids, fatty acids, pigments, vitamins, minerals, moisture and other attributes.

Contaminant and Microbial Testing

Because algae are grown in living biological systems, microbiological control is essential. Testing confirms microbial quality and, where relevant, checks for other contaminants such as heavy metals, which can come from the water, nutrients or processing.

Batch-to-Batch Consistency

A supplement manufacturer cannot rely on one good production batch. The same quality needs to be achieved repeatedly. Variations in strain condition, cultivation parameters, timing of harvest, processing, extraction or storage can affect the resulting ingredient. Standardised operating procedures, controlled cultivation, analytical testing and proper documentation all help minimise these changes.

Common Challenges in Algae Cultivation

For all their promise, algae can be challenging to grow. A culture that thrives in the lab won’t necessarily behave the same way at an industrial scale, and contamination and environmental shifts are constant risks.

Contamination

Contamination is probably one of the most common problems in algae cultivation. Unwanted microorganisms can compete with the desired algae for resources such as nutrients and light, and change culture conditions. Closed systems have less environmental exposure, while open systems need more attention.

Maintaining Consistent Growth

Algae respond quickly to changes in their surroundings. Even small shifts in temperature, light, pH, nutrients, salinity or CO₂ can affect growth, so keeping conditions stable and within the optimal range is critical.

Scaling Cultivation for Production

Scaling up from lab to commercial volumes brings challenges in lighting, gas exchange, mixing, temperature control and contamination prevention. What works in a flask won’t necessarily work in tens of thousands of litres. Successful scale-up means optimising productivity, energy use, equipment, harvesting and cost together.

Maintaining Nutritional Quality

Growing healthy algae is only half the job; the other half is making sure nutrients aren’t lost during downstream processing. Harvesting, drying and storage all need careful control to protect nutrients and bioactive compounds that are sensitive to heat, light, oxygen and moisture.

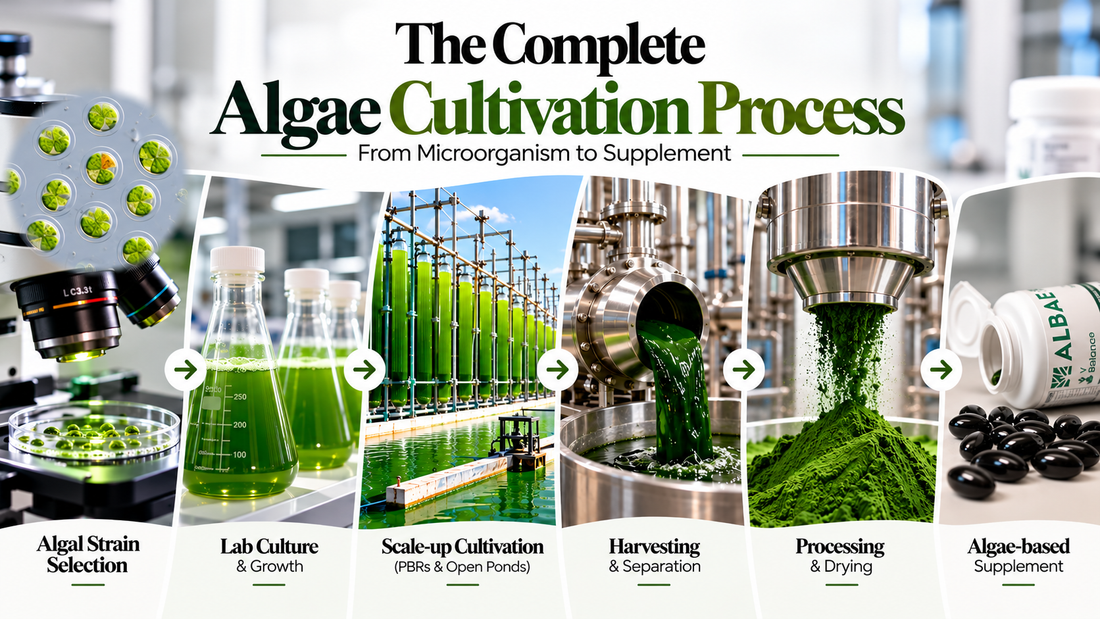

Complete Algae Cultivation Process at a Glance

The complete algae cultivation process can be viewed as a connected chain:

Strain Selection → Medium Preparation → Inoculation → Cultivation → Conditions Control → Culture Monitoring → Harvesting → Washing / Processing → Drying → Extraction / Processing → Formulation → Testing / Release

This is why the journey from a microscopic organism to a supplement ingredient is much more involved than it appears.

Conclusion

Algae cultivation lies at the heart of algae-based nutrition. A good end product starts long before the algae become a powder, capsule or softgel: it starts with choosing the right strain, giving it the right culture medium and creating conditions in which it grows predictably. Harvesting, drying and processing matter just as much, as they have a direct impact on the quality of the final ingredient. At Albae, we work with specialist cultivation partners whose processes we can trace and verify. That’s why we care about every step of the algae cultivation process described here.

FAQs

How Are Algae Grown for Supplements?

Algae used in supplements are cultivated in controlled tanks or open ponds with suitable light, water and nutrients.

What Conditions Are Required for Algae to Grow?

Photosynthetic algae need the right balance of light, temperature, pH, water quality, nutrients and carbon dioxide. The optimum conditions vary between species.

Which Algae Are Commonly Used in Supplements?

The most common include Spirulina, Chlorella, Haematococcus pluvialis, Schizochytrium and Nannochloropsis.

How Long Does Algae Cultivation Take?

There is no single cultivation time. It depends on the species, starting culture, growth conditions, cultivation system and desired harvest density.

How Is Algae Biomass Harvested?

Common methods include sedimentation, flocculation, filtration and centrifugation, chosen to suit the species and the end product. Often two or more are combined.

How Is Algae Converted Into Supplements?

After harvesting, the biomass is usually washed and dried. It can then be milled into a powder and used as a whole-food ingredient or processed further to extract specific compounds.

Does Cultivation Affect Algae Supplement Quality?

Yes. Growing conditions such as nutrients, light, temperature and stress affect the quality and biochemical makeup of the algae produced.

How Is Algae Supplement Quality Tested?

Reputable manufacturers test algae ingredients and finished supplements for purity, potency, microbial safety and contaminants such as heavy metals.
